總行程
Stroke
產品描述

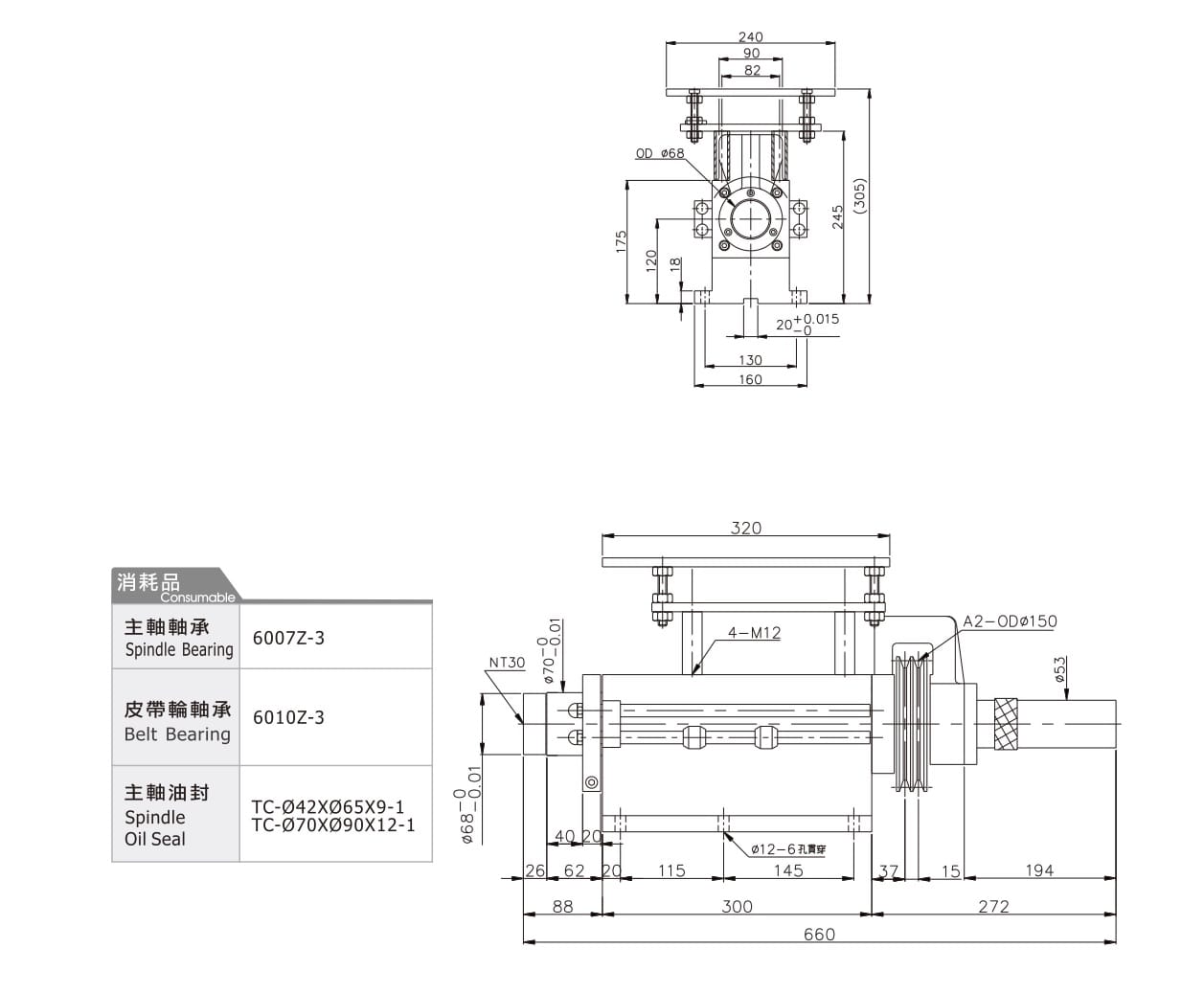

HN65 攻牙頭
詳細規格
規格
攻牙能力
Tapping Abilitys
Tapping Abilitys
加工螺紋導程
Fabricated Threaded Guiding Stroke
Fabricated Threaded Guiding Stroke
重量
Weight
Weight
80mm
M25(S45C)
0.7-2.5mm
66kg
保證精度
Ensure Accurate
Ensure Accurate
傳動輪方式
Transmission Wheel Type
Transmission Wheel Type
潤滑方式
Lubricate
Lubricate
固定螺栓
Fixing Bolts
Fixing Bolts
主軸端面之偏擺 0.015mm
Deflection Of Spindle Face 0.015mm
Deflection Of Spindle Face 0.015mm
(A)A2-0DØ150
(B)HTD-8M-63T
(C)RS40-2列-35T
(B)HTD-8M-63T
(C)RS40-2列-35T
黃油潤滑
Grease
Grease
6-M10x40L
